ASA-100
"A" Strut Assembly
Made from 6061-T6 aircraft quality aluminum.

Designed for the 3/16 inch shaft and bushing.
Accu-Tech RC Hardware recommends you use a 1/4 inch brass tube.

Strut total length = 2 and 5/16 inches
Strut width = 1 inch
Strut tube = 2 inches long
Bracket length = 2 inches
Bracket width = 1 inch

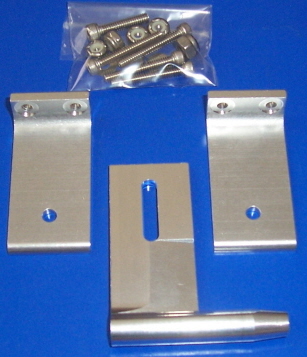

Bracket is adjustable from transom to leading edge of strut (as shown
in picture)

This Strut Assembly is recommended for 20 and 40 boats.
